MS308
PRODUCTS Off-the-Road
Off-The-Road-Tires
Discover our range of performance off-the-road solutions that maximize productivity with lower cost-per-hour, performance and value for the toughest OTR applications.

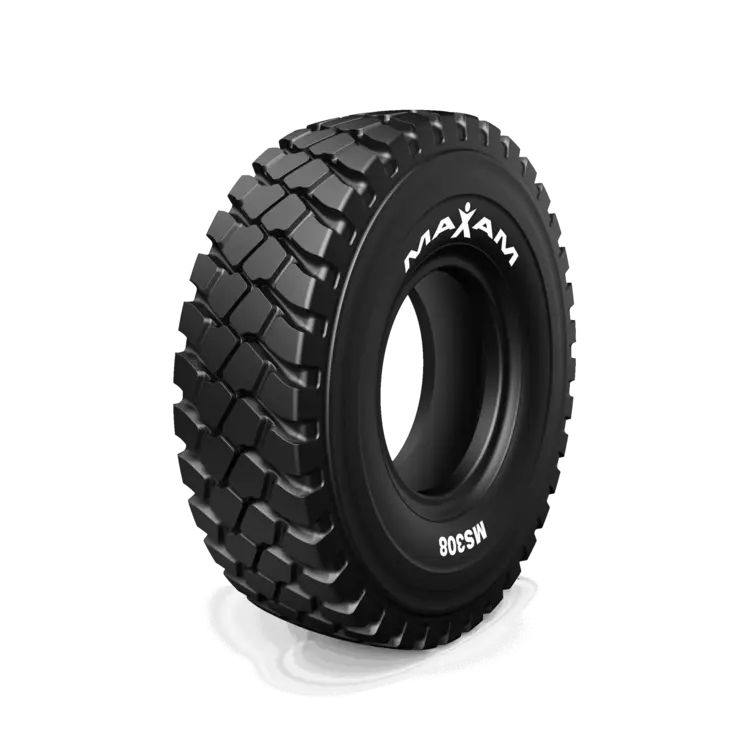

MS308
E3
Description

* Applications with load requirements exceeding the published values must be reviewed and approved by Maxam Tire. Please contact your Maxam Tire representative for more details.
Features
    • New reinforced sidewall, robust bead construction and enhanced tread belts to provide maximum protection and performance
    • Highly engineered tread pattern designed to provide maximum resistance to severe conditions
    • Deep tread depth delivers longer tire life and lower cost-per-hour
    • Heat resistant undertread reduces tire temperature, increasing the tire’s TKPH/TMPH
    • Multiple tread compound options target specific site requirements
Downloads

Applications

Size Rating Type Rim O.D. S.W T.D. Infl. P. L.C.C. (lbs/kg) Infl. P. L.C.C. (lbs/kg) L.I.
        in in 32nds psi 30 mph psi 5 mph
        mm mm mm KPa 50 kph KPa 10 kph
14.00R25 ★★★ TT 10.00/2.0 53.5 14.3 34 116 14100 174 21825 173B/188A2
14.00R25 ★★★ TT 10.00/2.0 1359 365 27 800 6400 1200 9900 173B/188A2
16.00R25 ★★★ TT/TL 11.25/2.0 58.5 17.0 35 116 17637 174 26895 180B/195A2
16.00R25 ★★★ TT/TL 11.25/2.0 1487 433 28 800 8000 1200 12200 180B/195A2
16.00R25 (MS308+) ★★★ TT/TL 11.25/2.0 59.5 17.1 40 116 17637 174 26895 180B/195A2
16.00R25 (MS308+) ★★★ TT/TL 11.25/2.0 1512 435 32 800 8000 1200 12200 180B/195A2
16.00R29 ★★★ TT/TL 11.25/2.5
11.5/2.0		 64.2 17.7 40 116 17637 174 30000 180B/199A2
16.00R29 ★★★ TT/TL 11.25/2.5
11.5/2.0		 1630 450 32 800 8000 1200 13600 180B/199A2
16.00R29 (MS308 PRO) ★★★ TT/TL 11.25/2.5
11.5/2.0		 64.2 17.7 40 116 19400 174 30000 183B/199A2
16.00R29 (MS308 PRO) ★★★ TT/TL 11.25/2.5
11.5/2.0		 1630 450 32 800 8800 1200 13600 183B/199A2
460/95R25 ★★★ TT/TL 11.25/2.0 60.0 18.0 35 116 20062 174 30865 184B/200A2
460/95R25 ★★★ TT/TL 11.25/2.0 1522 456 28 800 9100 1200 14000 184B/200A2
475/95R25 ★★★ TT/TL 11.5/2.0 61 19 35 116 21275 174 32740 186B/201A2
475/95R25 ★★★ TT/TL 11.5/2.0 1540 470 28 800 9650 1200 14850 186B/201A2
18.00R25 ★★★ TT/TL 13.00/2.5 66.5 19.8 40 116 22708 174 32740 189B/204A2
18.00R25 ★★★ TT/TL 13.00/2.5 1688 504 32 800 10300 1200 16000 189B/204A2
480/95R29 ★★★ TT/TL 13.00/2.5 64.5 19.0 40 116 20834 174 31967 186B/201A2
480/95R29 ★★★ TT/TL 13.00/2.5 1636 486 32 800 9450 1200 14500 186B/201A2
505/95R29 ★★★ TT/TL 13.00/2.5 77.0 20.5 40 116 24030 174 36917 191B/205A2
505/95R29 ★★★ TT/TL 13.00/2.5 1700 518 32 800 10900 1200 16700 191B/205A2

* Applications with load requirements exceeding the published values must be reviewed and approved by Maxam Tire. Please contact your Maxam Tire representative for more details.
